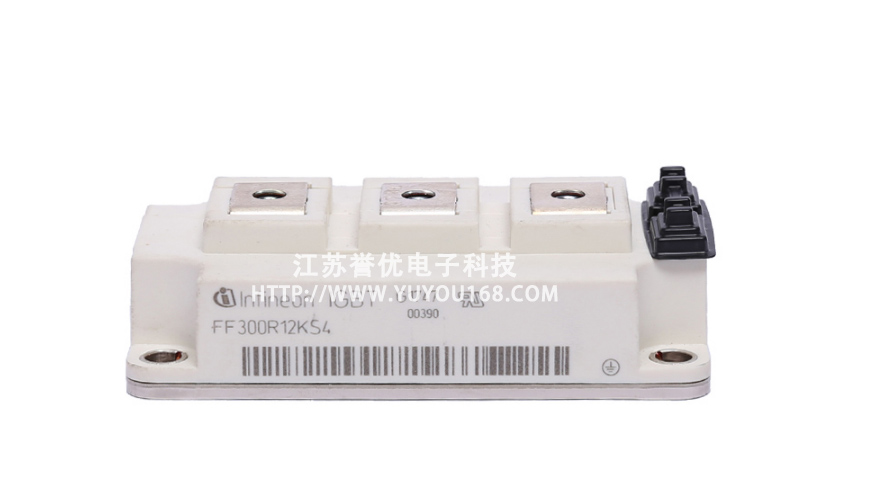

FF300R12KS4

1200 V 300 A 双 IGBT 模块

62 mm 1200 V、300 A  双 IGBT 模块，带有快速 IGBT 2，用于高频开关，将切实满足您的设计需求。也提供热界面材料

特征描述

  • 高短路能力，自限制短路电流

  • 低开关损耗

  • 无与伦比的鲁棒性

  • VCEsat 带正温度系数

  • 封装的 CTI > 400

  • 高爬电距离和电气间隙

  • 绝缘基板

  • 铜基板

  • 标准封装

优势

  • 灵活性

  • 优化电气性能

  • 可靠性高

潜在应用

  • 电机控制和驱动

  • 太阳能系统解决方案

  • 商用、工程和农用车辆(CAV)

  • 不间断电源(UPS)

  • 工业加热和焊接

指标参数

ParametricsFF300R12KS4
ConfigurationDual
Dimensions (length)106.4 mm
Dimensions (width)61.4 mm
Housing62 mm
IC(nom) / IF(nom)300.0 A
IC   max300.0 A
QualificationIndustrial
TechnologyIGBT2 Fast
VCE(sat) (Tvj=25°C typ)3.2 V
VF (Tvj=25°C typ)2.0 V
Voltage Class1200.0 V

FF系列型号列表

图片型号

电压

（ V）

技术

电流

（A)

VCE(sat)   Tvj=25°C typVF   Tvj=25°C
     typ

封装结构

(MM)

长宽

(MM)

宽度

(MM)

FF400R12KE3.pngFF100R12KS41200V IGBT2   Fast100A 3.2V2V62MM106.461.4
FF150R12KT3G1200VIGBT3   - T3150A 1.7V1.65V62MM106.461.4
FF150R12KE3G1200VIGBT3   - E3150A 1.7V1.65V62MM106.461.4
FF150R17KE41700VIGBT4   - E4150A 1.95V1.65V62MM106.4 61.4
FF150R12KS41200V IGBT2   Fast150A3.2V2V62MM106.4 61.4
FF150R12KS4_B21200VIGBT2   Fast150A3.2V2V62MM106.461.4
FF200R12KT31200VIGBT3   - T3200A1.7V1.65V62MM 106.461.4
FF200R12KT3_E1200VIGBT3   - T3200A1.7V1.65V62MM106.4 61.4
FF200R12KT41200VIGBT4   - T4200A1.75V1.65V62MM 106.4 61.4
FF200R12KE41200VIGBT4   - E4200A1.75V1.65V62MM106.4 61.4
FF200R12KE4P1200VIGBT4   - E4200A1.75V1.65V62MM 106.461.4
FF200R12KE31200VIGBT3   - E3200A1.75V1.65V62MM106.4 61.4
FF200R06KE3600VIGBT3   - E3200A 1.45V1.55V62MM106.4 61.4
FF200R17KE31700VIGBT3   - E3200A2V1.8V62MM106.4 61.4
FF200R12KS41200VIGBT2   Fast200A 3.2V2V62MM106.4 61.4
FF200R12KS4P1200VIGBT2   Fast200A3.2V2V62MM106.4 61.4
FF300R12KT3P_E1200VIGBT3   - T3300A1.7V1.65V62MM106.4 61.4
FF300R12KT3_E1200VIGBT3   - T3300A1.7V1.65V62MM106.4 61.4
FF300R12KT31200VIGBT3   - T3300A1.7V1.65V62MM106.4 61.4
FF300R12KT4P1200VIGBT4   - T4300A1.75V1.65V62MM106.4 61.4
FF300R12KT41200VIGBT4   - T4300A1.75V1.65V62MM106.4 61.4
FF300R06KE3600VIGBT3   - E3300A1.45V1.55V62MM106.4 61.4
FF300R12KE31200VIGBT3   - E3300A1.7V1.65V62MM106.4 61.4
FF300R06KE3_B2600VIGBT3   - E3300A1.45V1.55V62MM106.4 61.4
FF300R07KE4650VIGBT4   - E4300A1.55V1.55V62MM106.461.4
FF300R17KE41700VIGBT4   - E4300A1.95V1.8V62MM106.461.4
FF300R12KE4_E1200VIGBT4   - E4300A1.75V1.65V62MM106.461.4
FF300R12KE4P1200VIGBT4   - E4300A1.75V1.65V62MM106.461.4
FF300R12KE41200VIGBT4   - E4300A1.75V1.65V62MM106.461.4
FF300R12KE4_B21200VIGBT4   - E4300A1.75V1.65V62MM106.461.4
FF300R17KE4P1700VIGBT4   - E4300A1.95V1.8V62MM106.461.4
FF300R12KS4P1200VIGBT2   Fast300A3.2V2V62MM106.461.4
FF300R12KS41200VIGBT2   Fast300A3.2V2V62MM106.461.4
FF400R12KT3P_E1200VIGBT3   - T3400A1.7V1.65V62MM106.461.4
FF400R12KT4P1200VIGBT4   - T4400A1.65V1.65V62MM106.461.4
FF400R07KE4650VIGBT4   - E4400A1.55V1.55V62MM106.461.4
FF400R17KE4_E1700VIGBT4   - E4400A1.95V1.8V62MM106.461.4
FF400R17KE41700VIGBT4   - E4400A1.95V1.8V62MM106.4 61.4
FF400R12KT3_E1200VIGBT3   - T3400A1.7V1.65V62MM106.461.4
FF400R12KT31200VIGBT3   - T3400A1.7V1.65V62MM106.461.4
FF400R12KE3_B21200VIGBT3   - E3400A1.7V1.65V 62MM106.4 61.4
FF400R12KE31200VIGBT3   - E3400A1.7V1.65V 62MM106.461.4
FF400R06KE3600VIGBT3   - E3400A1.45V1.55V 62MM106.4 61.4
FF450R12KT41200VIGBT4   - T4450A1.75V1.7V62MM106.461.4
FF450R12KT4P1200VIGBT4   - T4450A1.75V1.7V62MM106.461.4
FF450R12KE41200VIGBT4   - E4450A1.75V1.7V62MM106.461.4
FF450R12KE4_E1200VIGBT4   - E4450A1.75V1.7V 62MM106.461.4
FF450R12KE4P1200VIGBT4   - E4450A1.75V1.7V62MM106.461.4
FF500R17KE41700VIGBT4   - E4500A1.95V1.95V 62MM106.461.4
FF600R12KE4_E1200VIGBT4   - E4600A1.75V1.7V 62MM106.461.4
FF600R12KE41200VIGBT4   - E4600A1.75V1.7V62MM106.461.4
FF600R12KE4P1200VIGBT4   - E4600A1.75V1.7V62MM106.461.4
